Credit Card Form

The credit-card-form example demonstrates how to build a multi-step form with textinputs bubbles and validation on the inputs.

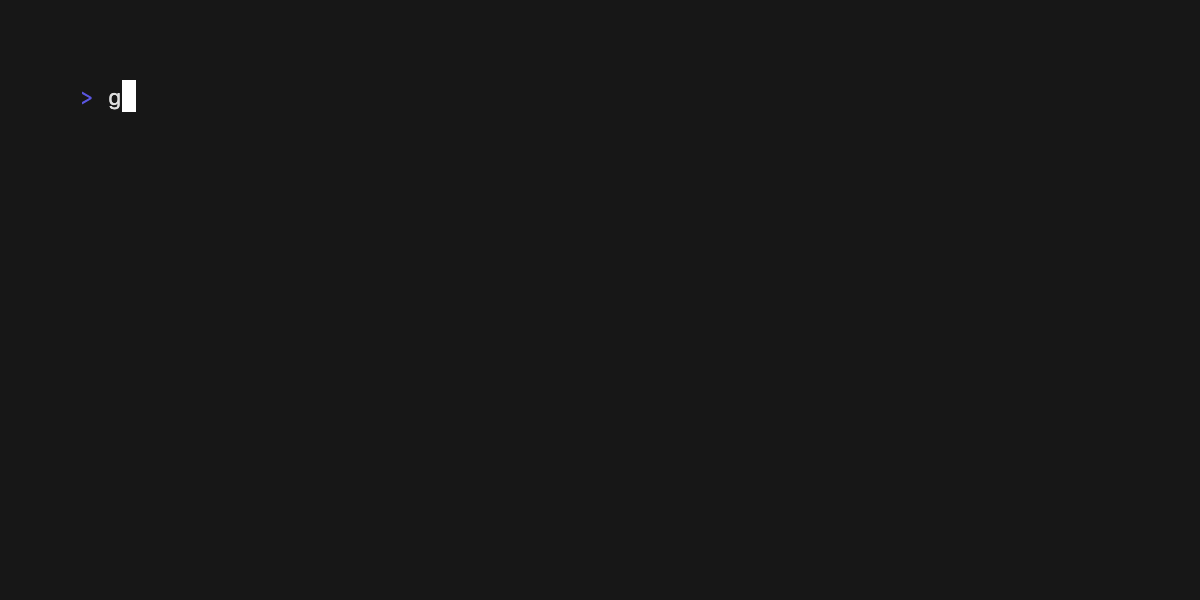

Preview

Code

pkgs/artisanal/example/tui/examples/credit-card-form/main.dart

/// Credit card form example ported from Bubble Tea.
library;

import 'package:artisanal/bubbles.dart'
    as tui
    hide
        CodeBlockCommentDelimiters,
        CodeLanguageProfile,
        Column,
        CommonKeyBindings,
        EditBuffer,
        EditHistoryCoalescePredicate,
        EditHistoryController,
        EditHistoryMarkerBuilder,
        EditHistoryStateEquals,
        EditorCoreConfig,
        EditorState,
        GraphemePredicate,
        GraphemeReader,
        Help,
        KeyBinding,
        KeyMap,
        PasteMsg,
        Row,
        Spinner,
        SpinnerModel,
        SpinnerTickMsg,
        Spinners,
        Text,
        TextCommandResult,
        TextCursorCommandResult,
        TextDecorationLayerKey,
        TextDecorationRange,
        TextDiagnosticRange,
        TextDiagnosticSeverity,
        TextDocument,
        TextDocumentChange,
        TextDocumentEditResult,
        TextEditResult,
        TextExtmark,
        TextExtmarkOptions,
        TextExtmarkPositionRange,
        TextExtmarksController,
        TextHighlightRange,
        TextHitResult,
        TextLineCommandResult,
        TextLineDecoration,
        TextLineStateCommandExtensions,
        TextLineStateSnapshot,
        TextOffsetStateCommandExtensions,
        TextOffsetStateDocumentEditingExtensions,
        TextOffsetStateSnapshot,
        TextPasteChunk,
        TextPasteChunkStep,
        TextPasteController,
        TextPasteMode,
        TextPastePlan,
        TextPasteReference,
        TextPasteReferenceStore,
        TextPasteSession,
        TextPatternDiagnosticRule,
        TextPosition,
        TextPositionDiagnosticRange,
        TextSelection,
        TextSyntaxBuildResult,
        TextSyntaxChangeWindow,
        TextSyntaxDecorationPatch,
        TextSyntaxLineWindow,
        TextSyntaxProvider,
        TextSyntaxSession,
        TextSyntaxSnapshot,
        TextView,
        TextViewLine,
        TextViewport,
        TextVisualCursorPosition,
        UndoCommandDecoder,
        UndoCommandJournalEntry,
        UndoManager,
        UndoableCommand;

import 'package:artisanal/artisanal.dart' show BasicColor, Style;
import 'package:artisanal/tui.dart' as tui;

const _hotPink = BasicColor('#FF06B7');
const _darkGray = BasicColor('#767676');

final _inputStyle = Style().foreground(_hotPink);
final _continueStyle = Style().foreground(_darkGray);

enum _Field { ccn, exp, cvv }

class CreditCardModel implements tui.Model {
  CreditCardModel({
    required this.inputs,
    this.focused = 0,
    this.error,
    this.initialCmd,
  });

  factory CreditCardModel.initial() {
    final inputs = <tui.TextInputModel>[
      tui.TextInputModel(
        placeholder: '4505 **** **** 1234',
        charLimit: 20,
        width: 30,
        prompt: '',
        validate: _ccnValidator,
      ),
      tui.TextInputModel(
        placeholder: 'MM/YY',
        charLimit: 5,
        width: 5,
        prompt: '',
        validate: _expValidator,
      ),
      tui.TextInputModel(
        placeholder: 'XXX',
        charLimit: 3,
        width: 5,
        prompt: '',
        validate: _cvvValidator,
      ),
    ];
    final focusCmd = inputs[0].focus();
    return CreditCardModel(inputs: inputs, focused: 0, initialCmd: focusCmd);
  }

  final List<tui.TextInputModel> inputs;
  final int focused;
  final String? error;
  final tui.Cmd? initialCmd;

  @override
  tui.Cmd? init() => initialCmd;

  @override
  (tui.Model, tui.Cmd?) update(tui.Msg msg) {
    final cmds = <tui.Cmd?>[];

    switch (msg) {
      case tui.KeyMsg(key: final key):
        final rune = key.runes.isNotEmpty ? key.runes.first : -1;
        switch (key.type) {
          case tui.KeyType.enter:
            if (focused == inputs.length - 1) {
              return (this, tui.Cmd.quit());
            }
            return _focusNext(cmds);
          case tui.KeyType.escape:
            return (this, tui.Cmd.quit());
          case tui.KeyType.tab:
            return _focusNext(cmds);
          case tui.KeyType.backspace:
          case tui.KeyType.delete:
          case tui.KeyType.runes:
          default:
            break;
        }
        if (key.ctrl && rune == 0x63) {
          return (this, tui.Cmd.quit());
        }
        // Ctrl+N
        if (key.ctrl && rune == 0x6e) {
          return _focusNext(cmds);
        }
        // Ctrl+P or shift+tab -> previous
        if ((key.ctrl && rune == 0x70) ||
            (key.type == tui.KeyType.tab && key.shift)) {
          return _focusPrev(cmds);
        }
      case _ErrMsg(:final message):
        return (copyWith(error: message), null);
    }

    // Update inputs
    var nextInputs = inputs;
    for (var i = 0; i < inputs.length; i++) {
      final (updated, cmd) = inputs[i].update(msg);
      nextInputs = [...nextInputs.take(i), updated, ...nextInputs.skip(i + 1)];
      cmds.add(cmd);
    }

    return (copyWith(inputs: nextInputs), _batch(cmds));
  }

  (CreditCardModel, tui.Cmd?) _focusNext(List<tui.Cmd?> cmds) {
    final next = (focused + 1) % inputs.length;
    return _setFocus(next, cmds);
  }

  (CreditCardModel, tui.Cmd?) _focusPrev(List<tui.Cmd?> cmds) {
    var next = focused - 1;
    if (next < 0) next = inputs.length - 1;
    return _setFocus(next, cmds);
  }

  (CreditCardModel, tui.Cmd?) _setFocus(int index, List<tui.Cmd?> cmds) {
    final updatedInputs = <tui.TextInputModel>[];
    for (var i = 0; i < inputs.length; i++) {
      if (i == index) {
        final cmd = inputs[i].focus();
        cmds.add(cmd);
        updatedInputs.add(inputs[i]);
      } else {
        inputs[i].blur();
        updatedInputs.add(inputs[i]);
      }
    }
    return (copyWith(inputs: updatedInputs, focused: index), _batch(cmds));
  }

  CreditCardModel copyWith({
    List<tui.TextInputModel>? inputs,
    int? focused,
    String? error,
    tui.Cmd? initialCmd,
  }) {
    return CreditCardModel(
      inputs: inputs ?? this.inputs,
      focused: focused ?? this.focused,
      error: error ?? this.error,
      initialCmd: initialCmd ?? this.initialCmd,
    );
  }

  @override
  String view() {
    final buffer = StringBuffer()
      ..writeln(' Total: \$21.50:\n')
      ..writeln(_inputStyle.width(30).render('Card Number'))
      ..writeln(inputs[_Field.ccn.index].view())
      ..writeln()
      ..write(_inputStyle.width(6).render('EXP'))
      ..write('  ')
      ..writeln(_inputStyle.width(6).render('CVV'))
      ..write(inputs[_Field.exp.index].view())
      ..write('  ')
      ..writeln(inputs[_Field.cvv.index].view())
      ..writeln()
      ..writeln(_continueStyle.render('Continue ->'))
      ..writeln();
    return buffer.toString();
  }
}

class _ErrMsg extends tui.Msg {
  const _ErrMsg(this.message);
  final String message;
}

String? _ccnValidator(String s) {
  if (s.length > 19) return 'CCN is too long';
  if (s.isEmpty) return 'CCN is invalid';
  // allow spaces every 4 digits
  for (var i = 0; i < s.length; i++) {
    final ch = s[i];
    if (i % 5 == 4) {
      if (ch != ' ') return 'CCN must separate groups with spaces';
    } else if (ch.codeUnitAt(0) < 0x30 || ch.codeUnitAt(0) > 0x39) {
      return 'CCN is invalid';
    }
  }
  return null;
}

String? _expValidator(String s) {
  final digits = s.replaceAll('/', '');
  if (int.tryParse(digits) == null) return 'EXP is invalid';
  if (s.length >= 3 && (s.indexOf('/') != 2 || s.lastIndexOf('/') != 2)) {
    return 'EXP is invalid';
  }
  if (s.length > 5) return 'EXP too long';
  return null;
}

String? _cvvValidator(String s) {
  if (s.length > 3) return 'CVV too long';
  if (s.length < 3) return null; // allow typing
  return int.tryParse(s) == null ? 'CVV invalid' : null;
}

tui.Cmd? _batch(List<tui.Cmd?> cmds) {
  final filtered = cmds.whereType<tui.Cmd>().toList();
  return filtered.isEmpty ? null : tui.Cmd.batch(filtered);
}

Future<void> main() async {
  await tui.runProgram(
    CreditCardModel.initial(),
    options: const tui.ProgramOptions(altScreen: false, hideCursor: false),
  );
}

Run it

dart run pkgs/artisanal/example/tui/examples/credit-card-form/main.dart
