Components Host

The components-host example hosts view components in a demo shell.

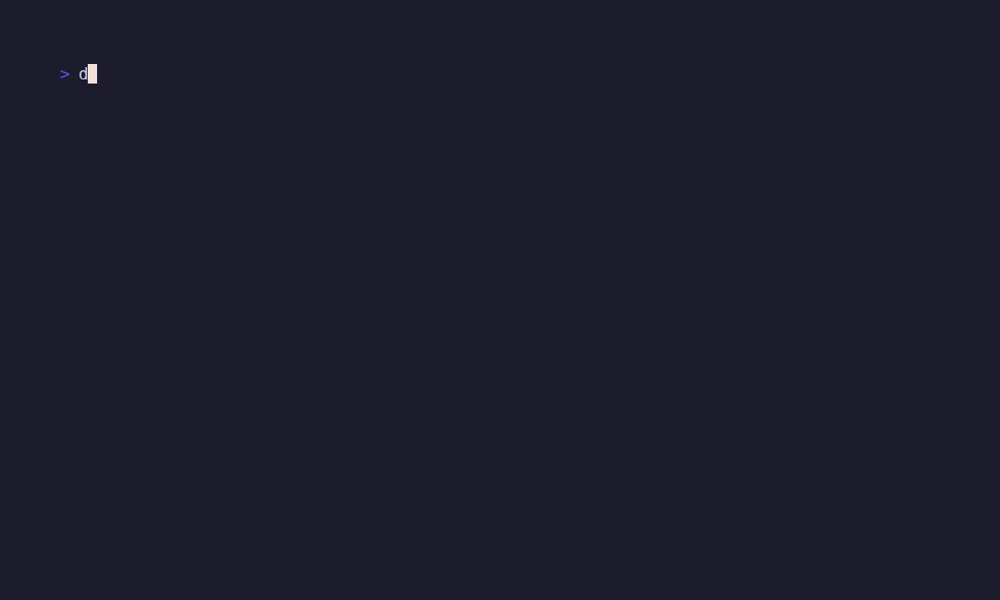

Preview

Code

pkgs/artisanal/example/tui/examples/components-host/main.dart

/// ViewComponent host demo.
///
/// A minimal example showing how to host multiple `ViewComponent`s inside a
/// parent `Model` while staying compatible with both the default renderer and
/// the UV renderer/input decoder.
///
/// Options:
///   --legacy-input     Use the legacy KeyParser (default is UV decoder)
///   --uv-renderer      Use the UV renderer (cell-buffer diff)
library;

import 'package:artisanal/bubbles.dart'
    as tui
    hide
        CodeBlockCommentDelimiters,
        CodeLanguageProfile,
        Column,
        CommonKeyBindings,
        EditBuffer,
        EditHistoryCoalescePredicate,
        EditHistoryController,
        EditHistoryMarkerBuilder,
        EditHistoryStateEquals,
        EditorCoreConfig,
        EditorState,
        GraphemePredicate,
        GraphemeReader,
        Help,
        KeyBinding,
        KeyMap,
        PasteMsg,
        Row,
        Spinner,
        SpinnerModel,
        SpinnerTickMsg,
        Spinners,
        Text,
        TextCommandResult,
        TextCursorCommandResult,
        TextDecorationLayerKey,
        TextDecorationRange,
        TextDiagnosticRange,
        TextDiagnosticSeverity,
        TextDocument,
        TextDocumentChange,
        TextDocumentEditResult,
        TextEditResult,
        TextExtmark,
        TextExtmarkOptions,
        TextExtmarkPositionRange,
        TextExtmarksController,
        TextHighlightRange,
        TextHitResult,
        TextLineCommandResult,
        TextLineDecoration,
        TextLineStateCommandExtensions,
        TextLineStateSnapshot,
        TextOffsetStateCommandExtensions,
        TextOffsetStateDocumentEditingExtensions,
        TextOffsetStateSnapshot,
        TextPasteChunk,
        TextPasteChunkStep,
        TextPasteController,
        TextPasteMode,
        TextPastePlan,
        TextPasteReference,
        TextPasteReferenceStore,
        TextPasteSession,
        TextPatternDiagnosticRule,
        TextPosition,
        TextPositionDiagnosticRange,
        TextSelection,
        TextSyntaxBuildResult,
        TextSyntaxChangeWindow,
        TextSyntaxDecorationPatch,
        TextSyntaxLineWindow,
        TextSyntaxProvider,
        TextSyntaxSession,
        TextSyntaxSnapshot,
        TextView,
        TextViewLine,
        TextViewport,
        TextVisualCursorPosition,
        UndoCommandDecoder,
        UndoCommandJournalEntry,
        UndoManager,
        UndoableCommand;
import 'package:artisanal/bubbles.dart'
    hide
        CodeBlockCommentDelimiters,
        CodeLanguageProfile,
        Column,
        CommonKeyBindings,
        EditBuffer,
        EditHistoryCoalescePredicate,
        EditHistoryController,
        EditHistoryMarkerBuilder,
        EditHistoryStateEquals,
        EditorCoreConfig,
        EditorState,
        GraphemePredicate,
        GraphemeReader,
        Help,
        KeyBinding,
        KeyMap,
        PasteMsg,
        Row,
        Spinner,
        SpinnerModel,
        SpinnerTickMsg,
        Spinners,
        Text,
        TextCommandResult,
        TextCursorCommandResult,
        TextDecorationLayerKey,
        TextDecorationRange,
        TextDiagnosticRange,
        TextDiagnosticSeverity,
        TextDocument,
        TextDocumentChange,
        TextDocumentEditResult,
        TextEditResult,
        TextExtmark,
        TextExtmarkOptions,
        TextExtmarkPositionRange,
        TextExtmarksController,
        TextHighlightRange,
        TextHitResult,
        TextLineCommandResult,
        TextLineDecoration,
        TextLineStateCommandExtensions,
        TextLineStateSnapshot,
        TextOffsetStateCommandExtensions,
        TextOffsetStateDocumentEditingExtensions,
        TextOffsetStateSnapshot,
        TextPasteChunk,
        TextPasteChunkStep,
        TextPasteController,
        TextPasteMode,
        TextPastePlan,
        TextPasteReference,
        TextPasteReferenceStore,
        TextPasteSession,
        TextPatternDiagnosticRule,
        TextPosition,
        TextPositionDiagnosticRange,
        TextSelection,
        TextSyntaxBuildResult,
        TextSyntaxChangeWindow,
        TextSyntaxDecorationPatch,
        TextSyntaxLineWindow,
        TextSyntaxProvider,
        TextSyntaxSession,
        TextSyntaxSnapshot,
        TextView,
        TextViewLine,
        TextViewport,
        TextVisualCursorPosition,
        UndoCommandDecoder,
        UndoCommandJournalEntry,
        UndoManager,
        UndoableCommand;

import 'package:artisanal/style.dart';
import 'package:artisanal/tui.dart' as tui;

class _ProgressStepMsg extends tui.Msg {
  const _ProgressStepMsg();
}

class _ComponentsHostModel extends tui.Model {
  _ComponentsHostModel({required this.useUvInput, required this.useUvRenderer})
    : spinner = tui.SpinnerModel(spinner: tui.Spinners.miniDot),
      progress = tui.ProgressModel(width: 44, useGradient: true),
      paginator = tui.PaginatorModel(
        type: tui.PaginationType.dots,
        perPage: 8,
      ).setTotalPages(_items.length);

  static final List<String> _items = List<String>.generate(
    64,
    (i) => 'Item ${i + 1}',
  );

  final bool useUvInput;
  final bool useUvRenderer;

  tui.SpinnerModel spinner;
  tui.ProgressModel progress;
  tui.PaginatorModel paginator;

  bool _auto = true;

  @override
  tui.Cmd? init() {
    return tui.Cmd.batch([spinner.tick(), _scheduleProgressStep()]);
  }

  tui.Cmd _scheduleProgressStep() {
    return tui.Cmd.tick(
      const Duration(milliseconds: 120),
      (_) => const _ProgressStepMsg(),
    );
  }

  @override
  (tui.Model, tui.Cmd?) update(tui.Msg msg) {
    // Global quits.
    if (msg case tui.KeyMsg(key: final key)
        when key.matchesSingle(tui.CommonKeyBindings.quit) ||
            key.isEscape ||
            key.isCtrlC ||
            key.isChar('q')) {
      return (this, tui.Cmd.quit());
    }

    final cmds = <tui.Cmd>[];

    // Local controls (and still allow delegation to children).
    if (msg case tui.KeyMsg(key: final key)) {
      if (key.isChar('p')) {
        _auto = !_auto;
      } else if (key.isChar('r') || key.isAccept) {
        final (p, c) = progress.setPercent(0, animate: false);
        progress = p;
        if (c != null) cmds.add(c);
      } else if (key.isChar('g')) {
        final (p, c) = progress.setPercent(1, animate: true);
        progress = p;
        if (c != null) cmds.add(c);
      }
    }

    // Delegate to child components (so they receive KeyMsg/WindowSizeMsg/etc).
    final (newSpinner, spinnerCmd) = spinner.update(msg);
    spinner = newSpinner;
    if (spinnerCmd case final c?) cmds.add(c);

    final (newProgress, progressCmd) = progress.update(msg);
    progress = newProgress;
    if (progressCmd case final c?) cmds.add(c);

    final (newPaginator, paginatorCmd) = paginator.update(msg);
    paginator = newPaginator;
    if (paginatorCmd case final c?) cmds.add(c);

    // Demo "work" loop: nudge progress while running.
    if (msg is _ProgressStepMsg) {
      cmds.add(_scheduleProgressStep());
      if (_auto) {
        final double nextTarget = progress.percent >= 1
            ? 0.0
            : (progress.percent + 0.04);
        final (p, c) = progress.setPercent(nextTarget, animate: true);
        progress = p;
        if (c != null) cmds.add(c);
      }
    }

    return (this, cmds.isEmpty ? null : tui.Cmd.batch(cmds));
  }

  @override
  String view() {
    final title = Style().bold().render('ViewComponent Host Demo');
    final mode =
        'input=${useUvInput ? 'uv' : 'legacy'}  renderer=${useUvRenderer ? 'uv' : 'default'}';
    final help =
        'q quit ${DotChars.bullet} p pause ${DotChars.bullet} Enter/Space/r reset ${DotChars.bullet} g complete ${DotChars.bullet} ←/→ page';

    final (start, end) = paginator.getSliceBounds(_items.length);
    final pageItems = _items.sublist(start, end);
    final pageText = pageItems
        .map((it) => '  ${Style().dim().render(DotChars.bullet)} $it')
        .join('\n');

    final status =
        '${spinner.view()}  ${_auto ? 'running' : 'paused'}  ${progress.view()}';

    return [
      title,
      mode,
      help,
      '',
      status,
      '',
      pageText,
      '',
      '  ${paginator.view()}',
      '',
    ].join('\n');
  }
}

Future<void> main(List<String> args) async {
  final legacy = args.contains('--legacy-input');
  final uvRenderer = args.contains('--uv-renderer');

  await tui.runProgram(
    _ComponentsHostModel(useUvInput: !legacy, useUvRenderer: uvRenderer),
    options: tui.ProgramOptions(
      altScreen: true,
      useUltravioletInputDecoder: !legacy,
      useUltravioletRenderer: uvRenderer,
    ),
  );
}

Run it

dart run pkgs/artisanal/example/tui/examples/components-host/main.dart
